Galvanised SS540 steel angle with unequal legs

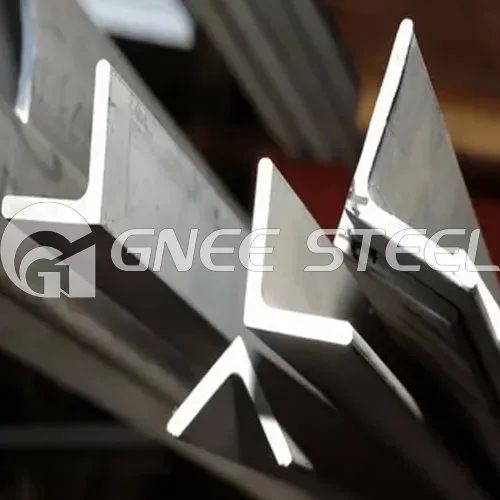

Uillinn Cruach Struchtúrtha SS540 Cur síos ar an Táirge:

Mír: cruach uillinn SS540.

Caighdeán: JIS G 3101-2004.

Teicneolaíocht: rollta te.

Cineál: cothrom & míchothrom.

Dromchla: dubh nó galbhánaithe.

Fad: 6 m, 9 m, 12 m nó de réir d'iarratais.

Uillinn chomhionann:

Méid: 20 × 20 mm go 200 × 200 mm.

Tiús: 3 go 20 mm.

Fad: 6 m, 9 m, 12 m nó de réir d'iarratais.

Uillinn mhíchothrom:

Méid: 30 × 20 mm go 250 × 90 mm.

Tiús: 3 go 10 mm.

Fad: 6 m, 9 m, 12 m nó de réir d'iarratais.

JIS G3101:2004Uillinn cruach struchtúrach SS540ina bhfuil 0.30% carbóin agus 1.60% mangainéise, rud a chuireann go mór lena neart. I gcomparáid le SS400 & SS490, tá neart i bhfad níos airde ag SS540 - 400 neart toraidh MPa agus neart teanntachta 540 MPa. Déanann ard-neart tóir ar fheidhmchláir ina bhfuil gá le neart ach is ceist í meáchan.

Tá go leor méideanna ag iarann cruach uillinn SS540 mar an tábla thíos ina bhfuil comhionann agus neamhionann. Tá sonraíochtaí saincheaptha ar fáil ar ordú speisialta. Thairis sin, tá trí chineál cóireála dromchla ann - dubh, ghalbhánuithe te-tumtha agus péinteáilte do do rogha féin.

Cruach uillinn SS540 Feidhmchláir:

Comhpháirteanna tábhachtacha de na struchtúir bhíoma uillinn.

Túr cumarsáide agus túr cumhachta.

Ceardlanna agus tionscadail innealtóireachta eile.

Píosaí comhpháirteacha le haghaidh struchtúir imthacaí cruach.

Grád cruach	stíleanna	Carbón, uasmhéid, %	Mangainéis, uasmhéid, %	Fosfar, uas, %	Sulfar, uasmhéid, %
SS540	Cruthanna Cruach	0.30	1.60	0.040	0.040

Nóta: D'fhéadfadh eilimintí cóimhiotail eile a bheith ar fáil ar ordú speisialta.

Maoin mheicniúil uillinn cruach carbóin SS540:
Grád cruach	Stíleanna	Neart teanntachta, MPa	Pointe toraidh, min, MPa
			Tiús, mm
			Níos lú ná nó cothrom le 16	16 - 40
SS540	Cruthanna Cruach	Níos mó ná 540 nó cothrom leis	Níos mó ná 400 nó cothrom leis	Níos mó ná 390 nó cothrom le

Sonraíocht cruach uillinn comhionann SS540
Mír	cos 1 (mm)	cos 2 (mm)	Tiús (mm)	Meáchan (kg/m)	Mír	cos 1 (mm)	cos 2 (mm)	Tiús (mm)	Meáchan (kg/m)
ESS540001	20	20	3	0.889	ESS540045	80	80	7	8.525
ESS540002	20	20	4	1.145	ESS540046	80	80	8	9.658
ESS540003	25	25	3	1.124	ESS540047	80	80	10	11.874
ESS540004	25	25	4	1.459	ESS540048	90	90	6	8.35
ESS540005	30	30	3	1.373	ESS540049	90	90	7	9.656
ESS540006	30	30	4	1.786	ESS540050	90	90	8	10.946
ESS540007	35	35	3	1.578	ESS540051	90	90	10	13.476
ESS540008	35	35	4	2.072	ESS540052	90	90	12	15.94
ESS540009	35	35	5	2.551	ESS540053	100	100	6	9.366
ESS540010	40	40	3	1.852	ESS540054	100	100	7	10.83
ESS540011	40	40	4	2.422	ESS540055	100	100	8	10.276
ESS540012	40	40	5	1.976	ESS540056	100	100	10	15.12
ESS540013	44	44	3	2.002	ESS540057	100	100	12	17.898
ESS540014	44	44	4	2.638	ESS540058	100	100	14	20.611
ESS540015	38	38	3	1.719	ESS540059	100	100	16	23.257
ESS540016	38	38	4	2.261	ESS540060	110	110	7	11.928
ESS540017	48	48	3	2.19	ESS540061	110	110	8	13.532
ESS540018	48	48	4	2.889	ESS540062	110	110	10	16.69
ESS540019	48	48	5	3.572	ESS540063	110	110	12	19.782
ESS540020	50	50	3	2.332	ESS540064	110	110	14	22.809
ESS540021	50	50	4	3.059	ESS540065	125	125	8	15.504
ESS540022	50	50	5	3.77	ESS540066	125	125	10	19.133
ESS540023	50	50	6	4.465	ESS540067	125	125	12	22.692
ESS540024	56	56	3	2.624	ESS540068	125	125	14	26.193
ESS540025	56	56	4	3.446	ESS540069	140	140	10	21.488
ESS540026	56	56	5	4.251	ESS540070	140	140	12	25.522
ESS540027	56	56	6	6.568	ESS540071	140	140	14	29.49
ESS540028	63	63	4	3.907	ESS540072	140	140	16	33.393
ESS540029	63	63	5	4.822	ESS540073	160	160	10	24.724
ESS540030	63	63	6	5.721	ESS540074	160	160	12	29.391
ESS540031	63	63	8	7.469	ESS540075	160	160	14	33.987
ESS540032	63	63	10	9.151	ESS540076	160	160	16	38.518
ESS540033	70	70	4	4.372	ESS540077	180	180	12	33.159
ESS540034	70	70	5	5.397	ESS540078	180	180	14	35.383
ESS540035	70	70	6	6.406	ESS540079	180	180	16	43.452
ESS540036	70	70	7	7.398	ESS540080	180	180	18	48.634
ESS540037	70	70	8	8.373	ESS540081	200	200	14	42.894
ESS540038	75	75	5	5.818	ESS540082	200	200	16	48.56
ESS540039	75	75	6	6.905	ESS540083	200	200	18	54.501
ESS540040	75	75	7	7.976	ESS540084	200	200	20	60.056
ESS540041	75	75	8	9.03	ESS540085	200	200	22	71.168
ESS540042	75	75	10	11.089	Fad=6 - 12 méadar
ESS540043	80	80	5	6.211
ESS540044	80	80	6	7.376

Méideanna cruach uillinn neamhchothrom SS540:

Sonraíocht cruach uillinn neamhchothrom SS540
Mír uimh.	cos 1 (mm)	cos 2 (mm)	Tiús (mm)	Meáchan (kg/m)	Mír uimh.	cos 1 (mm)	cos 2 (mm)	Tiús (mm)	Meáchan (kg/m)
UESS540001	30	20	3	1.14	UESS540045	100	50	6	6.98
UESS540002	30	20	4	1.49	UESS540046	100	50	8	9.16
UESS540003	40	20	3	1.38	UESS540047	100	50	10	11.3
UESS540004	40	20	3	1.8	UESS540048	100	65	7	8.96
UESS540005	40	25	4	1.97	UESS540049	100	65	8	10.2
UESS540006	45	30	4	2.3	UESS540050	100	65	9	11.3
UESS540007	45	30	5	2.82	UESS540051	100	65	10	12.5
UESS540008	50	30	5	3.02	UESS540052	100	75	7	9.52
UESS540009	50	30	6	3.58	UESS540053	100	75	8	10.8
UESS540010	50	40	4	2.77	UESS540054	100	75	9	12.1
UESS540011	50	40	5	3.42	UESS540055	100	75	10	13.3
UESS540012	50	40	6	4.03	UESS540056	100	75	11	14.6
UESS540013	60	30	5	3.43	UESS540057	100	75	12	15.8
UESS540014	60	30	6	4.06	UESS540058	120	80	8	12.4
UESS540015	60	30	7	4.68	UESS540059	120	80	10	15.3
UESS540016	60	40	5	3.83	UESS540060	120	80	12	18.2
UESS540017	60	40	6	4.54	UESS540061	130	65	8	12.1
UESS540018	60	40	7	5.24	UESS540062	130	65	10	14.9
UESS540019	65	50	5	4.43	UESS540063	130	65	12	17.7
UESS540020	65	50	6	5.26	UESS540064	130	75	8	12.7
UESS540021	65	50	7	6.08	UESS540065	130	75	10	15.7
UESS540022	65	50	8	6.88	UESS540066	130	75	12	18.6
UESS540023	75	50	5	4.83	UESS540067	130	90	10	17
UESS540024	75	50	6	5.75	UESS540068	130	90	12	20.1
UESS540025	75	50	7	6.65	UESS540069	150	75	9	15.7
UESS540026	75	50	8	7.53	UESS540070	150	75	10	17.4
UESS540027	75	50	9	8.4	UESS540071	150	75	11	18.9
UESS540028	75	55	5	5.04	UESS540072	150	75	12	20.6
UESS540029	75	55	7	6.93	UESS540073	150	90	10	18.6
UESS540030	75	65	6	6.49	UESS540074	150	90	12	22
UESS540031	75	65	8	8.48	UESS540075	150	90	15	27.1
UESS540032	75	65	10	10.5	UESS540076	150	100	10	19.3
UESS540033	80	40	6	5.51	UESS540077	150	100	12	23
UESS540034	80	40	8	7.21	UESS540078	150	100	14	26.6
UESS540035	80	60	6	6.49	UESS540079	160	80	10	18.5
UESS540036	80	60	7	7.5	UESS540080	160	80	12	22
UESS540037	80	60	8	8.48	UESS540081	160	80	14	25.4
UESS540038	80	65	6	6.73	UESS540082	200	100	10	23.4
UESS540039	80	65	8	8.82	UESS540083	200	100	12	27.8
UESS540040	80	65	10	10.9	UESS540084	200	100	15	34.4
UESS540041	90	65	6	7.22	UESS540085	250	90	10	26.6
UESS540042	90	65	7	8.32	Ábhar: SS540 Fad=6 - 12 méadar
UESS540043	90	65	8	9.44
UESS540044	90	65	10	11.7
