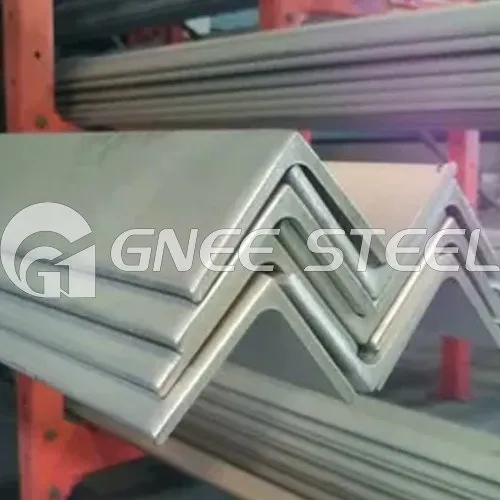

Uillinn cruach struchtúrach A588tá cosa cothroma nó míchothroma aige. Is féidir leat na sonraí a fháil sa tábla thíos. Má tá do thaifead le haghaidh méid uillinn cruach speisialta, cuir ríomhphost chugainn do mhéid saincheaptha nuair a bhíonn d'ordú comhionann nó níos mó ná ár gcainníocht íosta.
Cur síos ar uillinn cruach A588:
Grád cruach: A588.
Sonraíocht: ASTM A588.
Teicneolaíocht: rollta te.
Cineál: cothrom & míchothrom.
Fad: 6 m, 9 m, 12 m nó de réir d'iarratais.
Uillinn chomhionann:
Méid: 20 × 20 mm - 200 × 200 mm.
Tiús: 3 go 22 mm.
Fad: 6 m, 9 m, 12 m nó de réir d'iarratais.
Uillinn mhíchothrom:
Méid: 20 × 30 go 90 mm × 250 mm.
Tiús: 3 go 15 mm.
Fad: 6 m, 9 m, 12 m nó de réir d'iarratais.
Nóta: Tá méideanna cruach uillinn speisialta ar fáil má sháraíonn do chainníocht ordaithe an t-íosmhéid.
Uillinn Cruach ASTM A588 Ard Neart HSLA
Is cineál cruach HSLA é ASTM A588 (ard-neart, íseal-chóimhiotail) a chlúdaíonn méid beag eilimintí cóimhiotail - copar, cróimiam & nicil. Feabhsaítear airíonna an A588 go héifeachtach leis na heilimintí cóimhiotail seo agus méadaíonn siad a fheidhmchláir. Ar dtús, cuireann comhdhéanamh cóimhiotail a neart pointe toraidh go 50ksi agus neart teanntachta go 70ksi. Sa dara háit, le hábhar copair, tá friotaíocht creimneach atmaisféar maith ag A588 agus oibríonn sé ar feadh tréimhse níos faide. Tabhair a chuid airíonna cuimsitheacha den scoth,Iarann uillinn cruach A588a úsáidtear go forleathan i droichead, foirgneamh agus iarratais struchtúracha eile.
Buntáistí & gnéithe uillinn cruach ASTM A588:
Tá méid beag cróimiam, copar & nicil ann.
Cóimheas meáchain/neart níos ísle.
Frithsheasmhach in aghaidh creimeadh atmaisféar.
Ideal le haghaidh feidhmeanna ard-neart agus aimsir-nochta.
Is féidir méid cóimhiotal a ordú chun críche uathúil.
Costas níos lú san fhadtéarma.
Cad é an difríocht idir A588 agus cruach carbóin A36?
Is cruach struchtúrach íseal-chóimhiotail ard-neart é ASTM A588, agus níl in A36 ach cruach carbóin.
Mar gheall ar an difríocht san ábhar ceimiceach, tá níos mó iarratais ag cruach uillinn A588 ná barra uillinn éadrom A36.
Iarann uillinn A588 oiriúnach do thimpeallachtaí creimneach gan cóireáil dromchla breise a laghdaíonn costas éifeachtach.
Barra cruach uillinn A588 le pointe neart toraidh níos airde ná A36, a cheadaíonn meáchan éadrom don riocht céanna.
| Grád cruach | Carbón, uasmhéid, % | Mangainéis, % | Fosfar, uas, % | Sulfar, uasmhéid, % | sileacain, % | Nicil, uas, % | Cróimiam, % | Copar | Vanaidiam, % |
|---|---|---|---|---|---|---|---|---|---|
| A588 Grád A | 0.19 | 0.80 - 1.25 | 0.04 | 0.05 | 0.30 - 0.65 | 0.40 | 0.40 - 0.65 | 0.25 - 0.40 | 0.02 - 0.10 |
| Grád cruach | Stíleanna | Neart teanntachta, ksi [MPa] | Pointe toraidh, nóim, ksi [MPa] | Fadú i 8 in. [200 mm], nóim, % | Fadú i 2 in. [50 mm], nóim, % |
|---|---|---|---|---|---|
| A588 Grád A | Uillinneacha cruach | 70 [485] | 50 [345] | 18 | 21 |
Méid Cruach Uillinn Chomhionann ASTM A588:
| Mír | cos 1 (mm) | cos 2 (mm) | Tiús (mm) | Meáchan (kg/m) | Mír | cos 1 (mm) | cos 2 (mm) | Tiús (mm) | Meáchan (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| EA588001 | 20 | 20 | 3 | 0.889 | EA588045 | 80 | 80 | 7 | 8.525 |
| EA588002 | 20 | 20 | 4 | 1.145 | EA588046 | 80 | 80 | 8 | 9.658 |
| EA588003 | 25 | 25 | 3 | 1.124 | EA588047 | 80 | 80 | 10 | 11.874 |
| EA588004 | 25 | 25 | 4 | 1.459 | EA588048 | 90 | 90 | 6 | 8.35 |
| EA588005 | 30 | 30 | 3 | 1.373 | EA588049 | 90 | 90 | 7 | 9.656 |
| EA588006 | 30 | 30 | 4 | 1.786 | EA588050 | 90 | 90 | 8 | 10.946 |
| EA588007 | 35 | 35 | 3 | 1.578 | EA588051 | 90 | 90 | 10 | 13.476 |
| EA588008 | 35 | 35 | 4 | 2.072 | EA588052 | 90 | 90 | 12 | 15.94 |
| EA588009 | 35 | 35 | 5 | 2.551 | EA588053 | 100 | 100 | 6 | 9.5296 |
| EA588010 | 40 | 40 | 3 | 1.852 | EA588054 | 100 | 100 | 7 | 10.83 |
| EA588011 | 40 | 40 | 4 | 2.422 | EA588055 | 100 | 100 | 8 | 10.276 |
| EA588012 | 40 | 40 | 5 | 1.976 | EA588056 | 100 | 100 | 10 | 15.12 |
| EA588013 | 44 | 44 | 3 | 2.002 | EA588057 | 100 | 100 | 12 | 17.898 |
| EA588014 | 44 | 44 | 4 | 2.638 | EA588058 | 100 | 100 | 14 | 20.611 |
| EA588015 | 38 | 38 | 3 | 1.719 | EA588059 | 100 | 100 | 16 | 23.257 |
| EA588016 | 38 | 38 | 4 | 2.261 | EA588060 | 110 | 110 | 7 | 11.928 |
| EA588017 | 48 | 48 | 3 | 2.19 | EA588061 | 110 | 110 | 8 | 13.532 |
| EA588018 | 48 | 48 | 4 | 2.889 | EA588062 | 110 | 110 | 10 | 16.69 |
| EA588019 | 48 | 48 | 5 | 3.572 | EA588063 | 110 | 110 | 12 | 19.782 |
| EA588020 | 50 | 50 | 3 | 2.332 | EA588064 | 110 | 110 | 14 | 22.809 |
| EA588021 | 50 | 50 | 4 | 3.059 | EA588065 | 125 | 125 | 8 | 15.504 |
| EA588022 | 50 | 50 | 5 | 3.77 | EA588066 | 125 | 125 | 10 | 19.133 |
| EA588023 | 50 | 50 | 6 | 4.465 | EA588067 | 125 | 125 | 12 | 22.692 |
| EA588024 | 56 | 56 | 3 | 2.624 | EA588068 | 125 | 125 | 14 | 26.193 |
| EA588025 | 56 | 56 | 4 | 3.446 | EA588069 | 140 | 140 | 10 | 21.488 |
| EA588026 | 56 | 56 | 5 | 4.251 | EA588070 | 140 | 140 | 12 | 25.522 |
| EA588027 | 56 | 56 | 6 | 6.568 | EA588071 | 140 | 140 | 14 | 29.49 |
| EA588028 | 63 | 63 | 4 | 3.907 | EA588072 | 140 | 140 | 16 | 33.393 |
| EA588029 | 63 | 63 | 5 | 4.822 | EA588073 | 160 | 160 | 10 | 24.724 |
| EA588030 | 63 | 63 | 6 | 5.721 | EA588074 | 160 | 160 | 12 | 29.391 |
| EA588031 | 63 | 63 | 8 | 7.469 | EA588075 | 160 | 160 | 14 | 33.987 |
| EA588032 | 63 | 63 | 10 | 9.151 | EA588076 | 160 | 160 | 16 | 38.518 |
| EA588033 | 70 | 70 | 4 | 4.372 | EA588077 | 180 | 180 | 12 | 33.159 |
| EA588034 | 70 | 70 | 5 | 5.397 | EA588078 | 180 | 180 | 14 | 35.383 |
| EA588035 | 70 | 70 | 6 | 6.406 | EA588079 | 180 | 180 | 16 | 43.452 |
| EA5880529 | 70 | 70 | 7 | 7.398 | EA588080 | 180 | 180 | 18 | 48.634 |
| EA588037 | 70 | 70 | 8 | 8.373 | EA588081 | 200 | 200 | 14 | 42.894 |
| EA588038 | 75 | 75 | 5 | 5.818 | EA588082 | 200 | 200 | 16 | 48.56 |
| EA588039 | 75 | 75 | 6 | 6.905 | EA588083 | 200 | 200 | 18 | 54.501 |
| EA588040 | 75 | 75 | 7 | 7.976 | EA588084 | 200 | 200 | 20 | 60.056 |
| EA588041 | 75 | 75 | 8 | 9.03 | EA588085 | 200 | 200 | 22 | 71.168 |
| EA588042 | 75 | 75 | 10 | 11.089 | Fad=6 - 12 méadar | ||||
| EA588043 | 80 | 80 | 5 | 6.211 | |||||
| EA588044 | 80 | 80 | 6 | 7.376 | |||||
Méid Cruach Uillinn Neamhchothrom ASTM A588:
| Mír uimh. | cos 1 (mm) | cos 2 (mm) | Tiús (mm) | Meáchan (kg/m) | Mír uimh. | cos 1 (mm) | cos 2 (mm) | Tiús (mm) | Meáchan (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| UEA588001 | 30 | 20 | 3 | 1.14 | UEA588045 | 100 | 50 | 6 | 6.98 |
| UEA588002 | 30 | 20 | 4 | 1.49 | UEA588046 | 100 | 50 | 8 | 9.16 |
| UEA588003 | 40 | 20 | 3 | 1.38 | UEA588047 | 100 | 50 | 10 | 11.3 |
| UEA588004 | 40 | 20 | 3 | 1.8 | UEA588048 | 100 | 65 | 7 | 8.96 |
| UEA588005 | 40 | 25 | 4 | 1.97 | UEA588049 | 100 | 65 | 8 | 10.2 |
| UEA588006 | 45 | 30 | 4 | 2.3 | UEA588050 | 100 | 65 | 9 | 11.3 |
| UEA588007 | 45 | 30 | 5 | 2.82 | UEA588051 | 100 | 65 | 10 | 12.5 |
| UEA588008 | 50 | 30 | 5 | 3.02 | UEA588052 | 100 | 75 | 7 | 9.52 |
| UEA588009 | 50 | 30 | 6 | 3.58 | UEA588053 | 100 | 75 | 8 | 10.8 |
| UEA588010 | 50 | 40 | 4 | 2.77 | UEA588054 | 100 | 75 | 9 | 12.1 |
| UEA588011 | 50 | 40 | 5 | 3.42 | UEA588055 | 100 | 75 | 10 | 13.3 |
| UEA588012 | 50 | 40 | 6 | 4.03 | UEA588056 | 100 | 75 | 11 | 14.6 |
| UEA588013 | 60 | 30 | 5 | 3.43 | UEA588057 | 100 | 75 | 12 | 15.8 |
| UEA588014 | 60 | 30 | 6 | 4.06 | UEA588058 | 120 | 80 | 8 | 12.4 |
| UEA588015 | 60 | 30 | 7 | 4.68 | UEA588059 | 120 | 80 | 10 | 15.3 |
| UEA588016 | 60 | 40 | 5 | 3.83 | UEA588060 | 120 | 80 | 12 | 18.2 |
| UEA588017 | 60 | 40 | 6 | 4.54 | UEA588061 | 130 | 65 | 8 | 12.1 |
| UEA588018 | 60 | 40 | 7 | 5.24 | UEA588062 | 130 | 65 | 10 | 14.9 |
| UEA588019 | 65 | 50 | 5 | 4.43 | UEA588063 | 130 | 65 | 12 | 17.7 |
| UEA588020 | 65 | 50 | 6 | 5.26 | UEA588064 | 130 | 75 | 8 | 12.7 |
| UEA588021 | 65 | 50 | 7 | 6.08 | UEA588065 | 130 | 75 | 10 | 15.7 |
| UEA588022 | 65 | 50 | 8 | 6.88 | UEA588066 | 130 | 75 | 12 | 18.6 |
| UEA588023 | 75 | 50 | 5 | 4.83 | UEA588067 | 130 | 90 | 10 | 17 |
| UEA588024 | 75 | 50 | 6 | 5.75 | UEA588068 | 130 | 90 | 12 | 20.1 |
| UEA588025 | 75 | 50 | 7 | 6.65 | UEA588069 | 150 | 75 | 9 | 15.7 |
| UEA588026 | 75 | 50 | 8 | 7.53 | UEA588070 | 150 | 75 | 10 | 17.4 |
| UEA588027 | 75 | 50 | 9 | 8.4 | UEA588071 | 150 | 75 | 11 | 18.9 |
| UEA588028 | 75 | 55 | 5 | 5.04 | UEA588072 | 150 | 75 | 12 | 20.6 |
| UEA588029 | 75 | 55 | 7 | 6.93 | UEA588073 | 150 | 90 | 10 | 18.6 |
| UEA588030 | 75 | 65 | 6 | 6.49 | UEA588074 | 150 | 90 | 12 | 22 |
| UEA588031 | 75 | 65 | 8 | 8.48 | UEA588075 | 150 | 90 | 15 | 27.1 |
| UEA588032 | 75 | 65 | 10 | 10.5 | UEA588076 | 150 | 100 | 10 | 19.3 |
| UEA588033 | 80 | 40 | 6 | 5.51 | UEA588077 | 150 | 100 | 12 | 23 |
| UEA588034 | 80 | 40 | 8 | 7.21 | UEA588078 | 150 | 100 | 14 | 26.6 |
| UEA588035 | 80 | 60 | 6 | 6.49 | UEA588079 | 160 | 80 | 10 | 18.5 |
| UEA5880529 | 80 | 60 | 7 | 7.5 | UEA588080 | 160 | 80 | 12 | 22 |
| UEA588037 | 80 | 60 | 8 | 8.48 | UEA588081 | 160 | 80 | 14 | 25.4 |
| UEA588038 | 80 | 65 | 6 | 6.73 | UEA588082 | 200 | 100 | 10 | 23.4 |
| UEA588039 | 80 | 65 | 8 | 8.82 | UEA588083 | 200 | 100 | 12 | 27.8 |
| UEA588040 | 80 | 65 | 10 | 10.9 | UEA588084 | 200 | 100 | 15 | 34.4 |
| UEA588041 | 90 | 65 | 6 | 7.22 | UEA588085 | 250 | 90 | 10 | 26.6 |
| UEA588042 | 90 | 65 | 7 | 8.32 | Ábhar: ASTM A588 Fad=6 - 12 méadar | ||||
| UEA588043 | 90 | 65 | 8 | 9.44 | |||||
| UEA588044 | 90 | 65 | 10 | 11.7 | |||||
