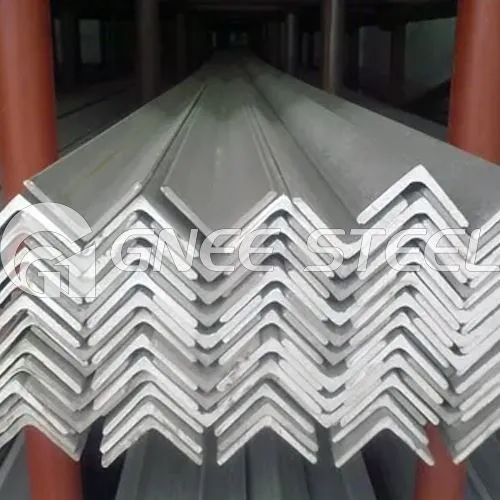

Uillinn Cruach Carbóin JIS SS400 - Galbhánaithe & Réamhphéinteáilte
Cur síos ar chruach uillinn SS400:
- Mír: cruach uillinn SS400.
- Caighdeán: JIS G3101-2004.
- Teicneolaíocht: te rollta.
- Cineál: comhionann & neamhionann.
- Dromchla: dubh nó ghalbhánuithe.
- Fad: 6 m, 9 m, 12 m nó de réir d'iarratais.
Uillinn chomhionann:
- Méid: 20 × 20 mm go 200 × 200 mm.
- Tiús: 3 go 20 mm.
- Fad: 6 m, 9 m, 12 m nó de réir d'iarratais.
Uillinn mhíchothrom:
- Méid: 30 × 20 mm go 250 × 90 mm.
- Tiús: 3 go 10 mm.
- Fad: 6 m, 9 m, 12 m nó de réir d'iarratais.
Uillinn Cruach Carbóin JIS SS400 - Galbhánaithe & Réamhphéinteáilte
Is cruach ísealcharbóin é SS400 gan ábhar sonraithe carbóin. De réir a n-airíonna meicniúla, tá sé cosúil le ASTM A36 a úsáidtear go forleathan in iarratais innealtóireachta agus tionsclaíocha. Tá uillinn cruach struchtúrach JIS SS400 réasúnta níos lú ó thaobh costais agus léiríonn sé go maith i dtionscadail mhóra innealtóireachta.
Dhá chóireáil dromchla coitianta iad galbhánú te-tumtha & réamhphéinteáil. Ós rud é nach bhfuil ábhar copair nó eilimintí cóimhiotail eile ag iarann uillinn SS400, ní féidir leis creimeadh comhshaoil a sheasamh gan sciath cosanta breise cosúil le sciath since. Tá an méid since saincheaptha ag brath ar an iarratas ar leith. Ina theannta sin, tá go leor dathanna le haghaidh péinteáil, rud a chuireann dearcadh aeistéitiúil freisin. Uillinn Cruach Carbóin JIS SS400 - Galvanized & Pre-Péinteáilte Is cruach ísealcharbóin é SS400 gan ábhar carbóin sonraithe. De réir a n-airíonna meicniúla, tá sé cosúil le ASTM A36 a úsáidtear go forleathan in iarratais innealtóireachta agus tionsclaíocha. Tá uillinn cruach struchtúrach JIS SS400 réasúnta níos lú ó thaobh costais agus léiríonn sé go maith i dtionscadail mhóra innealtóireachta. Cruach uillinn mhíchothrom SS400 Dhá chóireáil dromchla coitianta iad galbhánú te-tumtha & réamhphéinteáil. Ós rud é nach bhfuil ábhar copair nó eilimintí cóimhiotail eile ag iarann uillinn SS400, ní féidir leis creimeadh comhshaoil a sheasamh gan sciath cosanta breise cosúil le sciath since. Tá an méid since saincheaptha ag brath ar an iarratas ar leith. Ina theannta sin, tá go leor dathanna le haghaidh péinteáil, rud a chuireann dearcadh aeistéitiúil freisin.
Uillinn Cruach SS400 Neamhchothrom
| Grád cruach | Stíleanna | Carbón, uasmhéid, % | Mangainéis, % | Fosfar, uas, % | Sulfar, uasmhéid, % |
|---|---|---|---|---|---|
| SS400 | Cruthanna Cruach | -- | -- | 0.050 | 0.050 |
| Grád cruach | Stíleanna | Neart teanntachta, MPa | Pointe toraidh, min, MPa | |
|---|---|---|---|---|
| Tiús, mm | ||||
| Níos lú ná nó cothrom le 16 | 16 - 40 | |||
| SS400 | Cruthanna cruach | 400 - 510 | Níos mó ná nó cothrom le 245 | Níos mó ná nó cothrom le 235 |
Méideanna cruach uillinn comhionann JIS SS400:
| Mír | cos 1 (mm) | cos 2 (mm) | Tiús (mm) | Meáchan (kg/m) | Mír | cos 1 (mm) | cos 2 (mm) | Tiús (mm) | Meáchan (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| ESS400001 | 20 | 20 | 3 | 0.889 | ESS400045 | 80 | 80 | 7 | 8.525 |
| ESS400002 | 20 | 20 | 4 | 1.145 | ESS400046 | 80 | 80 | 8 | 9.658 |
| ESS400003 | 25 | 25 | 3 | 1.124 | ESS400047 | 80 | 80 | 10 | 11.874 |
| ESS400004 | 25 | 25 | 4 | 1.459 | ESS400048 | 90 | 90 | 6 | 8.35 |
| ESS400005 | 30 | 30 | 3 | 1.373 | ESS400049 | 90 | 90 | 7 | 9.656 |
| ESS400006 | 30 | 30 | 4 | 1.786 | ESS400050 | 90 | 90 | 8 | 10.946 |
| ESS400007 | 35 | 35 | 3 | 1.578 | ESS400051 | 90 | 90 | 10 | 13.476 |
| ESS400008 | 35 | 35 | 4 | 2.072 | ESS400052 | 90 | 90 | 12 | 15.94 |
| ESS400009 | 35 | 35 | 5 | 2.551 | ESS400053 | 100 | 100 | 6 | 9.366 |
| ESS400010 | 40 | 40 | 3 | 1.852 | ESS400054 | 100 | 100 | 7 | 10.83 |
| ESS400011 | 40 | 40 | 4 | 2.422 | ESS400055 | 100 | 100 | 8 | 10.276 |
| ESS400012 | 40 | 40 | 5 | 1.976 | ESS400056 | 100 | 100 | 10 | 15.12 |
| ESS400013 | 44 | 44 | 3 | 2.002 | ESS400057 | 100 | 100 | 12 | 17.898 |
| ESS400014 | 44 | 44 | 4 | 2.638 | ESS400058 | 100 | 100 | 14 | 20.611 |
| ESS400015 | 38 | 38 | 3 | 1.719 | ESS400059 | 100 | 100 | 16 | 23.257 |
| ESS400016 | 38 | 38 | 4 | 2.261 | ESS400060 | 110 | 110 | 7 | 11.928 |
| ESS400017 | 48 | 48 | 3 | 2.19 | ESS400061 | 110 | 110 | 8 | 13.532 |
| ESS400018 | 48 | 48 | 4 | 2.889 | ESS400062 | 110 | 110 | 10 | 16.69 |
| ESS400019 | 48 | 48 | 5 | 3.572 | ESS400063 | 110 | 110 | 12 | 19.782 |
| ESS400020 | 50 | 50 | 3 | 2.332 | ESS400064 | 110 | 110 | 14 | 22.809 |
| ESS400021 | 50 | 50 | 4 | 3.059 | ESS400065 | 125 | 125 | 8 | 15.504 |
| ESS400022 | 50 | 50 | 5 | 3.77 | ESS400066 | 125 | 125 | 10 | 19.133 |
| ESS400023 | 50 | 50 | 6 | 4.465 | ESS400067 | 125 | 125 | 12 | 22.692 |
| ESS400024 | 56 | 56 | 3 | 2.624 | ESS400068 | 125 | 125 | 14 | 26.193 |
| ESS400025 | 56 | 56 | 4 | 3.446 | ESS400069 | 140 | 140 | 10 | 21.488 |
| ESS400026 | 56 | 56 | 5 | 4.251 | ESS400070 | 140 | 140 | 12 | 25.522 |
| ESS400027 | 56 | 56 | 6 | 6.568 | ESS400071 | 140 | 140 | 14 | 29.49 |
| ESS400028 | 63 | 63 | 4 | 3.907 | ESS400072 | 140 | 140 | 16 | 33.393 |
| ESS400029 | 63 | 63 | 5 | 4.822 | ESS400073 | 160 | 160 | 10 | 24.724 |
| ESS400030 | 63 | 63 | 6 | 5.721 | ESS400074 | 160 | 160 | 12 | 29.391 |
| ESS400031 | 63 | 63 | 8 | 7.469 | ESS400075 | 160 | 160 | 14 | 33.987 |
| ESS400032 | 63 | 63 | 10 | 9.151 | ESS400076 | 160 | 160 | 16 | 38.518 |
| ESS400033 | 70 | 70 | 4 | 4.372 | ESS400077 | 180 | 180 | 12 | 33.159 |
| ESS400034 | 70 | 70 | 5 | 5.397 | ESS400078 | 180 | 180 | 14 | 35.383 |
| ESS400035 | 70 | 70 | 6 | 6.406 | ESS400079 | 180 | 180 | 16 | 43.452 |
| ESS400036 | 70 | 70 | 7 | 7.398 | ESS400080 | 180 | 180 | 18 | 48.634 |
| ESS400037 | 70 | 70 | 8 | 8.373 | ESS400081 | 200 | 200 | 14 | 42.894 |
| ESS400038 | 75 | 75 | 5 | 5.818 | ESS400082 | 200 | 200 | 16 | 48.56 |
| ESS400039 | 75 | 75 | 6 | 6.905 | ESS400083 | 200 | 200 | 18 | 54.501 |
| ESS400040 | 75 | 75 | 7 | 7.976 | ESS400084 | 200 | 200 | 20 | 60.056 |
| ESS400041 | 75 | 75 | 8 | 9.03 | ESS400085 | 200 | 200 | 22 | 71.168 |
| ESS400042 | 75 | 75 | 10 | 11.089 | Fad=6 - 12 méadar SS400 nó Q235 | ||||
| ESS400043 | 80 | 80 | 5 | 6.211 | |||||
| ESS400044 | 80 | 80 | 6 | 7.376 | |||||
Méid cruach uillinn neamhchothrom JIS SS400:
| Mír uimh. | cos 1 (mm) | cos 2 (mm) | Tiús (mm) | Meáchan (kg/m) | Mír uimh. | cos 1 (mm) | cos 2 (mm) | Tiús (mm) | Meáchan (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| UESS400001 | 30 | 20 | 3 | 1.14 | UESS400045 | 100 | 50 | 6 | 6.98 |
| UESS400002 | 30 | 20 | 4 | 1.49 | UESS400046 | 100 | 50 | 8 | 9.16 |
| UESS400003 | 40 | 20 | 3 | 1.38 | UESS400047 | 100 | 50 | 10 | 11.3 |
| UESS400004 | 40 | 20 | 3 | 1.8 | UESS400048 | 100 | 65 | 7 | 8.96 |
| UESS400005 | 40 | 25 | 4 | 1.97 | UESS400049 | 100 | 65 | 8 | 10.2 |
| UESS400006 | 45 | 30 | 4 | 2.3 | UESS400050 | 100 | 65 | 9 | 11.3 |
| UESS400007 | 45 | 30 | 5 | 2.82 | UESS400051 | 100 | 65 | 10 | 12.5 |
| UESS400008 | 50 | 30 | 5 | 3.02 | UESS400052 | 100 | 75 | 7 | 9.52 |
| UESS400009 | 50 | 30 | 6 | 3.58 | UESS400053 | 100 | 75 | 8 | 10.8 |
| UESS400010 | 50 | 40 | 4 | 2.77 | UESS400054 | 100 | 75 | 9 | 12.1 |
| UESS400011 | 50 | 40 | 5 | 3.42 | UESS400055 | 100 | 75 | 10 | 13.3 |
| UESS400012 | 50 | 40 | 6 | 4.03 | UESS400056 | 100 | 75 | 11 | 14.6 |
| UESS400013 | 60 | 30 | 5 | 3.43 | UESS400057 | 100 | 75 | 12 | 15.8 |
| UESS400014 | 60 | 30 | 6 | 4.06 | UESS400058 | 120 | 80 | 8 | 12.4 |
| UESS400015 | 60 | 30 | 7 | 4.68 | UESS400059 | 120 | 80 | 10 | 15.3 |
| UESS400016 | 60 | 40 | 5 | 3.83 | UESS400060 | 120 | 80 | 12 | 18.2 |
| UESS400017 | 60 | 40 | 6 | 4.54 | UESS400061 | 130 | 65 | 8 | 12.1 |
| UESS400018 | 60 | 40 | 7 | 5.24 | UESS400062 | 130 | 65 | 10 | 14.9 |
| UESS400019 | 65 | 50 | 5 | 4.43 | UESS400063 | 130 | 65 | 12 | 17.7 |
| UESS400020 | 65 | 50 | 6 | 5.26 | UESS400064 | 130 | 75 | 8 | 12.7 |
| UESS400021 | 65 | 50 | 7 | 6.08 | UESS400065 | 130 | 75 | 10 | 15.7 |
| UESS400022 | 65 | 50 | 8 | 6.88 | UESS400066 | 130 | 75 | 12 | 18.6 |
| UESS400023 | 75 | 50 | 5 | 4.83 | UESS400067 | 130 | 90 | 10 | 17 |
| UESS400024 | 75 | 50 | 6 | 5.75 | UESS400068 | 130 | 90 | 12 | 20.1 |
| UESS400025 | 75 | 50 | 7 | 6.65 | UESS400069 | 150 | 75 | 9 | 15.7 |
| UESS400026 | 75 | 50 | 8 | 7.53 | UESS400070 | 150 | 75 | 10 | 17.4 |
| UESS400027 | 75 | 50 | 9 | 8.4 | UESS400071 | 150 | 75 | 11 | 18.9 |
| UESS400028 | 75 | 55 | 5 | 5.04 | UESS400072 | 150 | 75 | 12 | 20.6 |
| UESS400029 | 75 | 55 | 7 | 6.93 | UESS400073 | 150 | 90 | 10 | 18.6 |
| UESS400030 | 75 | 65 | 6 | 6.49 | UESS400074 | 150 | 90 | 12 | 22 |
| UESS400031 | 75 | 65 | 8 | 8.48 | UESS400075 | 150 | 90 | 15 | 27.1 |
| UESS400032 | 75 | 65 | 10 | 10.5 | UESS400076 | 150 | 100 | 10 | 19.3 |
| UESS400033 | 80 | 40 | 6 | 5.51 | UESS400077 | 150 | 100 | 12 | 23 |
| UESS400034 | 80 | 40 | 8 | 7.21 | UESS400078 | 150 | 100 | 14 | 26.6 |
| UESS400035 | 80 | 60 | 6 | 6.49 | UESS400079 | 160 | 80 | 10 | 18.5 |
| UESS400036 | 80 | 60 | 7 | 7.5 | UESS400080 | 160 | 80 | 12 | 22 |
| UESS400037 | 80 | 60 | 8 | 8.48 | UESS400081 | 160 | 80 | 14 | 25.4 |
| UESS400038 | 80 | 65 | 6 | 6.73 | UESS400082 | 200 | 100 | 10 | 23.4 |
| UESS400039 | 80 | 65 | 8 | 8.82 | UESS400083 | 200 | 100 | 12 | 27.8 |
| UESS400040 | 80 | 65 | 10 | 10.9 | UESS400084 | 200 | 100 | 15 | 34.4 |
| UESS400041 | 90 | 65 | 6 | 7.22 | UESS400085 | 250 | 90 | 10 | 26.6 |
| UESS400042 | 90 | 65 | 7 | 8.32 | Ábhar: JIS SS400 Fad=6 - 12 méadar | ||||
| UESS400043 | 90 | 65 | 8 | 9.44 | |||||
| UESS400044 | 90 | 65 | 10 | 11.7 | |||||
Post iarainn uillinn SS400 de fhálú nasc slabhra
